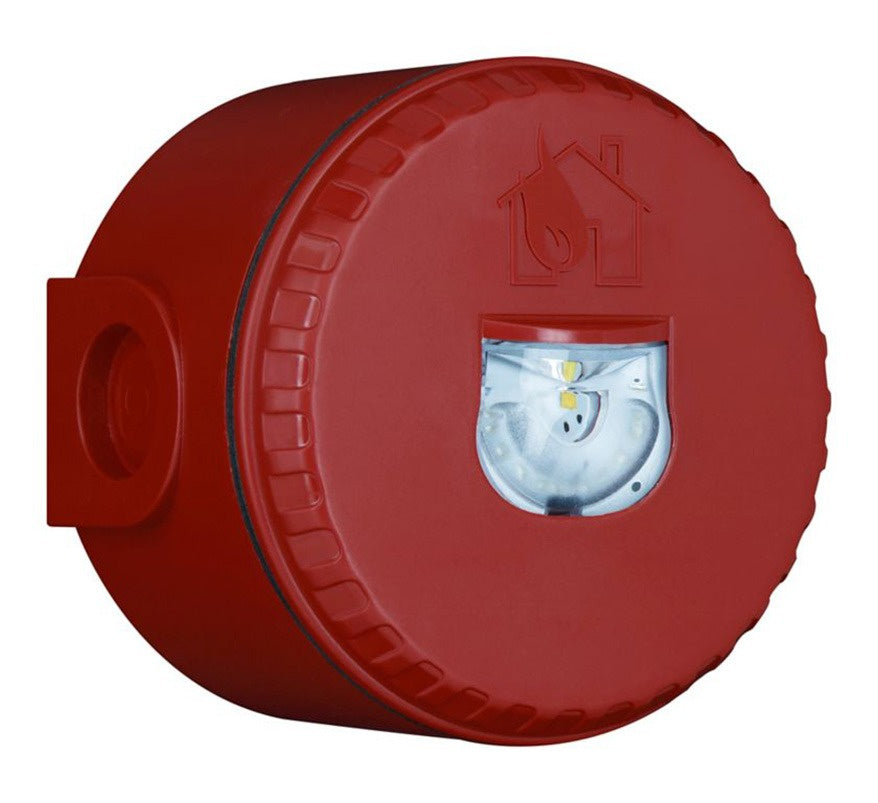

Eaton Cooper Intelligent Addressable Wall VAD (White Flash, Deep Base) (CAB492WD)

The Eaton Cooper CAB492WD is an intelligent addressable wall-mounted visual alarm device (VAD) with a red body and white LED flash, supplied with a deep base. It is certified to EN 54-23 and gives a low-profile, low-current visual fire warning on Eaton intelligent addressable fire alarm systems.

It uses Eaton's patented lens design to distribute light efficiently, and its discreet appearance suits public areas.

Key features

• Compliant with EN 54-23
• Ultra-low current consumption
• Coverage switch: 7.5 m or 2.5 m
• Flash rate switch from 1 Hz to 0.5 Hz reduces power consumption by up to 50%
• Patented lens design for efficient light distribution
• Deep base, IP65

Technical specifications

• Part number: CAB492WD (Eaton catalogue no. 812034FULL-0210X)
• Mounting: wall
• Voltage: 19 to 30 V
• Standby current: less than 330 μA
• Operating current: 12.5 to 45 mA (depending on setting and LED colour)
• Mounting height: 2.4 m
• Coverage: 7.5 m (switchable to 2.5 m)
• Coverage volume code: W-2.4-7.5
• Flash rate: 0.5 Hz (switchable to 1 Hz)
• Flash colour: white
• Ingress protection: IP65 (deep base)
• Operating temperature: −10°C to +55°C (Type A); −25°C to +70°C (Type B)
• Dimensions (H x W x D): 93 x 93 x 67 mm
