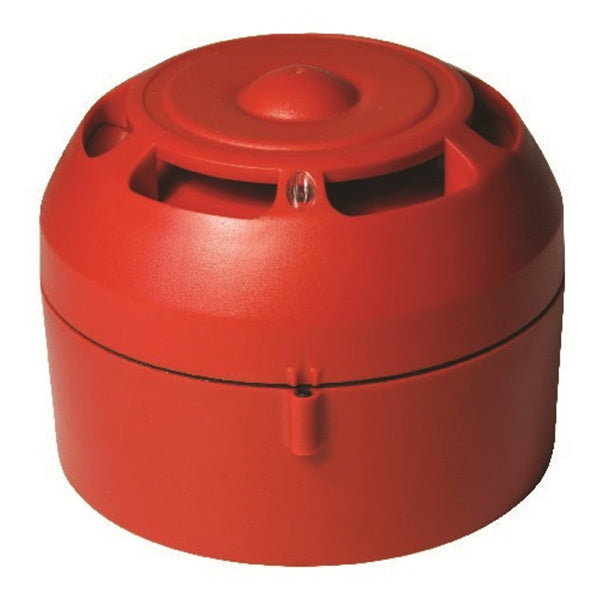

Nittan Evolution Addressable High Output Sounder with Isolator (EV-HIOP-SDR-SCI)

The Nittan EV-HIOP-SDR-SCI (part no. F16-82060) is an analogue addressable high output sounder for Nittan Evolution fire alarm systems. It is a Type B outdoor sounder rated IP65, using a rocking armature transducer, with a built-in short circuit isolator on the -ve line.

It uses the Evolution FSK signalling protocol and is EEPROM addressed with a programmer. It offers 32 tones selected by DIP switch, three of which are approved tones.

Nittan notes that +ve and -ve isolator styles cannot be mixed on one system, so check panel compatibility with Nittan technical support before specifying.

Key features

• Integrated -ve line short circuit isolator
• Up to 100 dB(A) sounder output
• 32 tones selected by DIP switch (3 approved tones)
• IP65 rated for outdoor use (Type B)
• Evolution FSK protocol, EEPROM addressed

Technical specifications

• Sounder: rocking armature transducer, up to 100 dB(A) at 1 m (tone and angle dependent)
• Operating voltage: 24 to 38 V DC (35 V DC system voltage)
• Quiescent current: 200 µA
• Operating temperature: -25°C to +70°C
• Relative humidity: up to 95% RH, non-condensing
• Ingress protection: IP65
• Addressing: soft addressing, non-volatile EEPROM
• Material: ABS
• Sounder operating current: 20 mA
• Dimensions: Ø104 x 80 mm
• Mass: 225 g
• Isolator Vso min / max: 9 / 11 V DC
• Isolator Vsc min / max: 10 / 13 V DC
• Isolator max. line current: 800 mA; max. switching current: 1500 mA
• Isolator max. leakage current: 13 mA; max. switch resistance: 150 mΩ
• Standards: EN 54-3 and EN 54-17
• CPR number: 0359-CPR-00465
• Manufacturer part number: F16-82060
