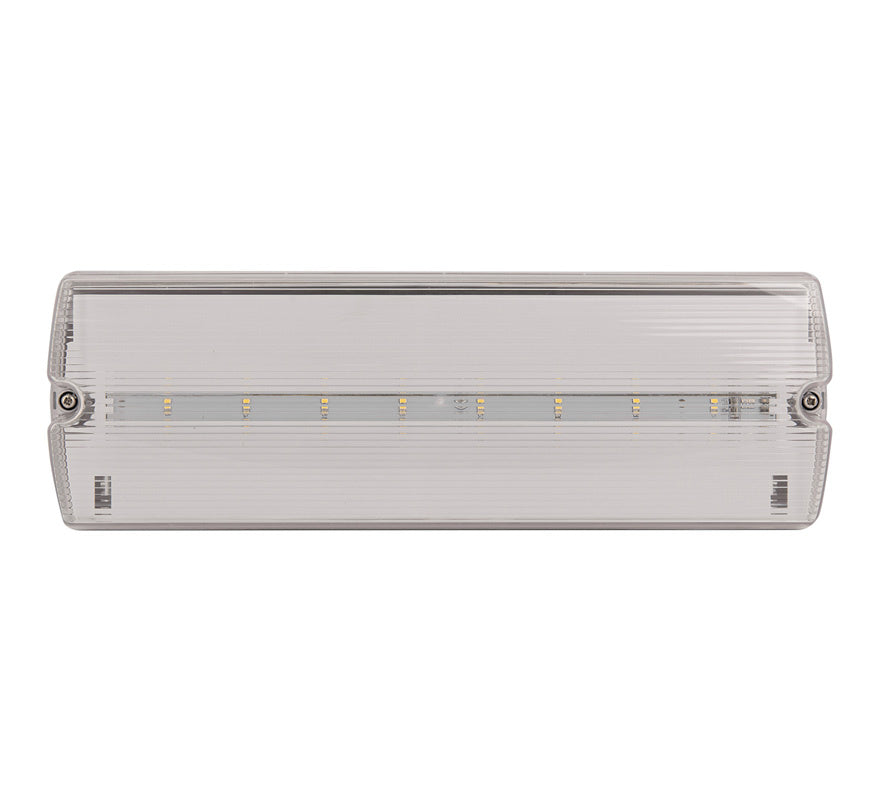

The Hispec Emerald HSEM/LED is a universal LED emergency bulkhead that can be set for maintained or non-maintained operation, with a minimum 3-hour emergency duration from its LiFePO4 lithium battery. It is IP65 rated for indoor and outdoor use, and is supplied with stick-on legends so it can also be used to indicate exit routes. It is produced in accordance with BS EN 60598-2-22.
Key features
- Maintained or non-maintained operation
- 3-hour emergency duration
- Long-lasting LiFePO4 lithium battery with overcharge and over-discharge protection
- Hinged gear tray and push-fit terminals for quick installation
- Multiple 20mm entry points; 20mm stuffing gland included
- Stick-on legends included
- IP65, Class II
Technical specifications
- Product code: HSEM/LED
- Rated voltage: 220–240V AC, 50/60Hz
- Wattage: 4.5W
- Lumen output (maintained and emergency mode): 200lm
- Colour temperature: 6000K
- Battery: LiFePO4 3.2V 1000mAh
- Charging time: 24 hours
- Minimum emergency duration: 3 hours
- Ingress protection: IP65
- Protection class: Class II
- Operating temperature: -20°C to 40°C
- Weight: 496g
- Produced in accordance with BS EN 60598-2-22
